When studying the working memory (WM), the ‘slot model’ and the ‘resource model’ are two main theories used to describe how information retention occurs. The slot model shows that WM capacity consists of a certain number of predefined slots available for information storage. This theory explains that there is a binary condition during information recall in which information is either wholly maintained within a slot or forgotten. The resource model gives a resolution-based approach defining a continuous resource able to be distributed among an unlimited number of items in the WM capacity. With newer hybrid models suggesting that WM may not strictly conform to one model, this study aimed to understand the relationship between the original models. By implementing correlational assessments of subjects’ performances in two different psychophysics tasks (analog recall paradigm with sequential bar presentation and delayed match to-sample task (DMS) with checkerboard stimuli which are representative for resource and slot models, respectively), our study revealed significant correlations between WM performance (Measured by DMS tasks) with recall error, precision, and sources of error (measured by sequential paradigm). Overall, the findings emphasize the importance of considering both models in understanding WM processes, shedding light on the debate between slot and resource models by demonstrating overlap in elements of both models.

Working Memory (WM) is a limited short-term storage for temporary information retention and manipulation playing a critical role in multiple cognitive functions such as language comprehension, learning and reasoning [1, 2]. The WM capacity is a sensitive component influenced by different executive processes according to different neuropsychological models [3]. The conflict surrounding how this information is stored in WM has given rise to two popular theories: the ‘slot model’ and the ‘resource model’. The slot model conceptualizes WM capacity with a limited number of slots available in an all-or-none format for information storage. While, 50 this model lacks a quality measure for resolution of recall, the resource model proposes a dynamic allocation of resources to memorized items, where memory precision decreases as the number of memorized items increases. [4, 5]

The evaluation of WM typically involves various paradigms, such as delayed match-to-sample (DMS) tasks and analog recall tasks, each aiming to elucidate different characteristics and features of WM limits. While these tasks offer valuable insights, they exhibit distinct differences in their overall frameworks. For example, DMS tasks can interpret subject reactions based on correct or incorrect responses, assuming that either an item is fully maintained or forgotten without considering memory resolution. In contrast, analog recall tasks typically present a range of options for subjects to choose from, assuming internal and external noise influences memory recall. This raises the question of whether these tasks evaluate different aspects of the same concept or are they assessing distinct properties of WM While previously introduced WM paradigms were used to assess slot and resource models, recent computational models suggest that WM is not always confined within one of these traditional models, but rather has stimulus specific features and is not a solitary process. These 6evidences suggest that strict categorization of visual WM between slot and resource models are less reflective of experimental data and a stimulus specific bias theory is more relevant [7]. Predicting performance outcomes using these tasks varies based of specific parameters. For instances, it relies on stimulus characteristics, object structure, complexity, and overall scene structure, all of which significantly impact WM performance [8-10]. With the goal to understand the correlation between WM precision and capacity, and the underlying similarities of the resource and slot model, we conducted this study. Subject performances in the DMS task with checkerboard stimuli and sequential paradigm with bar stimuli were correlated revealing intrinsic association between the two models.

Setting

Visual stimulifor task setup were generated with MATLAB software(MATLAB 2019a, The MathWorks, Inc, Natick, MA) and controlled by the Psychtoolbox 3 extension [11]. Subjects sat ina dimly lit room with a distance of ~48cm from a cathode ray tube monitor (CRT,15”, refresh rate of 75 Hz). A total of healthy volunteers (7 females, 26.56± 4.61 years old, from 21 to years old) were recruited for this studyand enrolled in two visual WM tasks: analog recall paradigm with sequential bar presentation and a DMS with checkerboard stimuli.

Sequential paradigmwith bar stimuli

In the sequential task,each trial beganwith a central fixationpoint (0.26) displayed for 2 seconds followed by presentation of a red, blue and green bar (pseudorandom order, 2.57 by 0.19, Figure. 1A). The minimum angulardifference between bars was 10 angulardegrees and each barwas presented for 500ms and there was a 500ms delay (wherea blank screen was displayed) between bars. Subjects were instructed to memorize the orientation of each bar. After presentation of the last bar, a vertical probe bar (in red, blue, or green) was presented to the subject. Participants were asked toadjust the orientation of the probe bar to one of the previously displayed bars with the same color (target bar) using a computer mouse. By clicking on theright button of the computer mouse,to confirm theirdecision, they receivedvisual feedback showing the correct orientation of thetarget bar, their response, and the angulardifference between their answer and the bar in question. We recorded the orientation of presented bars, subject’s response, and recall error (angular difference between targetangle and subjectresponse for each trial). Beforebeginning the main task,a 10-trial trainingblock (with 1 bar, instead of 3)was used to familiarize the subjects with the procedure. We collected data from 6 blocks, each consisting of 30 trials (i.e., 180 trials per subject).

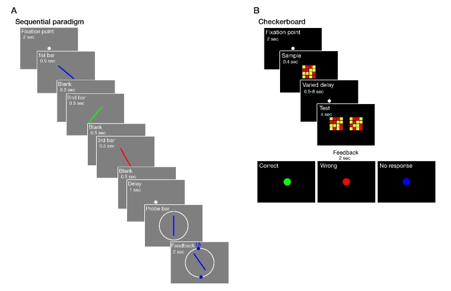

Figure 1: Schematic design of WorkingMemory (WM) tasks.A: In the analog recall paradigm with sequential bar presentation, subjects were askedto memorize bar orientations of threeconsecutively presented bars. After a1s delay interval they were asked to matchthe probe bar to the angleof one of the previously presented bars with the same color. B: Forthe Delayed Match-to-Sample (DMS) task with checkerboard stimuli,subjects were askedto memorize a checkerboard pattern and after a randomdelay interval of 0.5,1, 2, 4 or 8 secondsthey were asked to select the correct pattern previously presented between two different checkerboard patterns.

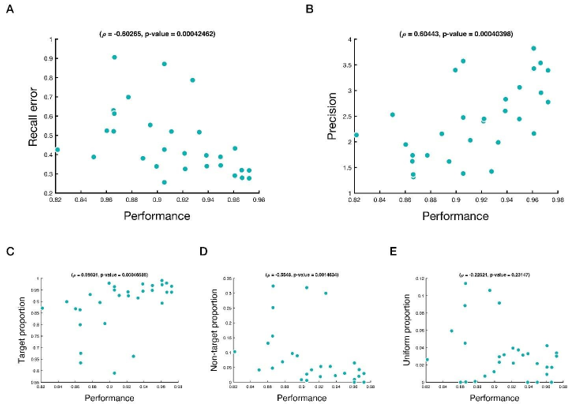

Figure 2: Correlations between parameters in analog recall paradigmwith performance of Correlation between (A) recall error,(B) precision, (C) target, (D) non-target (swap error), and (E) uniformproportions with DMS performance. Rho and p value of Pearson’s correlation are provided above each subplot.

Delayed match-to-sample task (DMS)I

The searchfor a comprehensive model explaining behavioral data from working memory(WM) tasks has led tothe emergence of two prominentschools of thought: the slot-based model and the resource-based model. While each model possesses uniqueproperties capable of explainin various observation patternsin WM assessment, the discrepancies between them have been a subject of debate. Although recent studies have introduced hybridtheories, such as the categorical resource model,which incorporate features from both traditional models,correlative assessments have not been clearly implemented to absolve the differences of these theories[7]. Our correlational study aimedto unveil similarities and differences between these two mainstream models. The moderate to high correlation observed between recall error and precision with DMS task performance, particularly noticeable in the thirdbar (the leastchallenging to memorizedue to the shortest delay interval), highlights that when thememory load is lower in the sequential task, the results are more correlated to the less challenging task (i.e., DMS). This is complementary to a study by Zokaei et al.,which compared digit span measures with a precision task and found significant correlations between performance in backward digitspan (the more difficult condition in a slot-based model task) and precision in a resource model task [12]. In addition, our study had the benefit of showing the correlation pattern between these two tasks with higher temporal resolutions in DMS (from 0.5 to8s) and sequential tasks (1 to3 bars). These analyses showed no significant correlation in the 2s and 4s delay periods(Figure. 3, explained below), which shows the importance of considering full range of delay intervals. The variation of correlation significance and power observed in our workis in line with a 2020 comparative analysis evaluating three visual WM tasks with distinct properties involving different types of stimuli and presentation formats to critique the comprehensive relevance of three prominent models(pure slot model, pure resource mode, and hybrid models) in explaining WM capacity [10]. While the slot-based model lacks the capacity to represent variability in memory resolution, continuous resource models assumeinternal and externalnoise according to signal detection theory. Although their findings were supportive of the pure resourcemodel, regardless of task type, the joint model analysis showed performance in two tasks cannot be described with a single estimate of capacity or resource and it varies depending on simultaneous or sequential stimuli presentation. Resourcedistribution for information encoding and maintenance depends on information content and encoding conditions. They explain that studies supportive of the discrete slot model have overlooked base rate manipulation, set size variations (i.e., number of items asked to be memorized) and response bias (tendency to endorse a specific response). Therefore, the observed variability in correlation coefficients in specific delay intervals (2s and 4s) with recall error and precision could be described by different experimental settings in our study. The absenceof a significant correlation between uniform proportion (uniform error)and performance in the DMS task suggests that slot-based model tasks cannot be used to study uniform error. It is worth noting that the MixtureModel, introduced earlier by Bays et al., categorizes error patterns into three types: target, non-target, and uniform error.However, with the incorporation of the neural resource model (Stochastic sampling), the uniform error seemsto be less relevant[13, 14]. In orderto avoid any potential, confound, our inclusion criteria were limited to individuals younger than 40 years old [15, 16]. However, this study had limitations which could be improved by conducting future EEG and functional MRI studies,along with behavioral paradigms, to distinguish betweendifferent models and pathwaysinvolved. Considering the impactof neuropsychological disorders such as MultipleSclerosis, Alzheimer’s disease,and Parkinson’s on WM decline, which all require imaging modalities as a diagnostic step,integrating comparative analyses of imaging data with performance-based tasks can help distinguishing different WM models in the future[17-19]. In conclusion, our study revealed a significant correlation between the resourceand slot models, determining that the slot model is not necessarily outdated. This can serve as a confirmatory approach for when dealingwith larger samplesizes and limitedtime, allowing relianceon classical models. However,when addressing sourcesof errors and their underlying features, classical slot modelsexhibit a weakerassociation with memoryfunction.

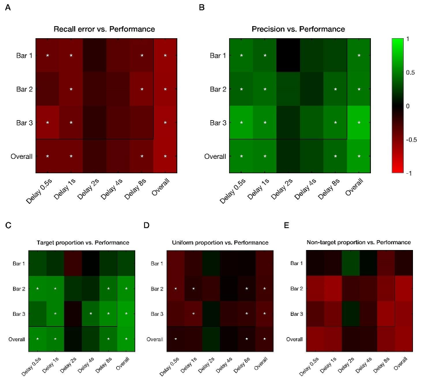

Figure 3: Correlation betweenbar orders in sequential paradigmvs. delay intervalsin

Anonymized data will be available upon request from corresponding author.The corresponding authorwill consider the request against the data-sharing policyin the protocol and ethical approval of the study.

This study was supported by Isfahan University of Medical Sciences (grant number: 2400104).

DMS. Heat map of Spearman’s correlation coefficient valuesbetween (A) recallerror, (B) precision, (C) target,(D) non-target, and (E) uniform proportions, from bars 1 to 3 with checkerboard performance from five distinct delay periods (0.5, 1, 2, 4, and8s). Asterisk shows significant correlation (p < 0.05), while greenshades represent positiveand red shades represent negative correlations.
